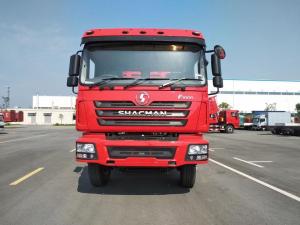

SHACMAN Dump Truck F3000 6x4 8x4 430 Euro V Red
Detailed Product Description
Model: SX3255DV384R
Drive type: 8x4
Engine Brand: WEICHAI
Engine Model: WP12.430E50
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B+QH50
Heavy Dump Truck Parameters
| Model | SX3255DV384R |
| Drive type | 8x4 |
| Weight | Gross Vehicle Weight | ≤70 |
| Dimensions | Wheelbase/(mm) | 1800+3975+1400 |
| Performance | Maximum speed/(km/h) | 43～60/80 |
| Ground clearance | >314 |
| Engine | Brand | WEICHAI |
| Model | WP12.430E50 |
| Power/(kw/HP) | 280kw / 430Hp |
| Maximum torque / (N.M)/rpm | 1600 N·M |
| Displacement/(L) | 9.726 L |
| Emission standard | Euro II |
| Gearbox | Brand | FAST |
| Model | 12JSD200T-B+QH50 /spline |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake |
| Park brake | Rear wheel spring brake |
| Auxiliary brake | WEVB engine exhaust brake |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Axles | Brand | HANDE |
| Front axle | 2*9.5T front axle MAN technology |
| Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery |
| Cab | Type | SHACMAN F3000 Standard cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, lever rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. |
FAQ
1. Who are we?
Introduced in 2009, the F3000 series has become an iconic symbol of SHACMAN's prowess, seamlessly blending comfort and power by integrating cutting-edge technology derived from MAN.
Founded in 2015, our company operates from its headquarters in Shaanxi, China. Our main target market is Africa, accounting for 70.00% of our sales, followed by Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), the Middle East (2.00%), Eastern Asia (2.00%), and South Asia (2.00%). With a team size of around 11-50 employees, our office supports our business operations effectively.
2. How can we guarantee quality?
SHACMAN Truck is common practice to have a pre-production sample before proceeding with mass production. This step allows for the evaluation of the product's quality, functionality, and adherence to specifications before committing to large-scale manufacturing.
3. What can you buy from us?
Dump truck, tractor truck, lorry truck, Crane truck, Mixer truck. Sime-trucks.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
