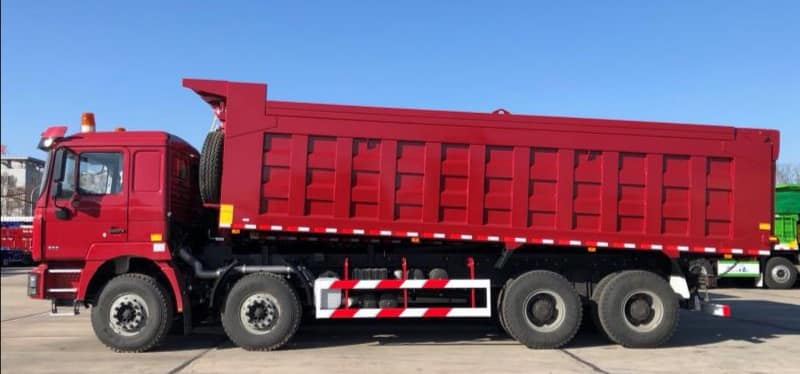

SHACMAN F3000 Tipper Truck 8x4 380 EuroII Red
Detailed Product Description
Model: SX3315DT366
Drive type: 8x4
Weight: Gross Vehicle Weight≤90
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Tipper dump truck Parameters
| Model | SX3315DT366 |
| Drive type | 8x4 |
| Weight | Gross Vehicle Weight | ≤90 |
| Dimensions | Wheelbase/(mm) | 1800+3575+1400 |
| Performance | Maximum speed/(km/h) | 45～60/80 |
| Ground clearance | >314 |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 |
| Power/(kw/HP) | 279kw / 380Hp |
| Maximum torque / (N.M)/rpm | 1600 N·M |
| Displacement/(L) | 9.726 L |
| Emission standard | Euro II |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake |
| Park brake | Rear wheel spring brake |
| Auxiliary brake | WEVB engine exhaust brake |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×320 (8+7+8) |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
Advantages
- Assembled from the world's top components and assemblies with the quality of European trucks and the first Chinese truck manufacturer to pass the European ECE-R29 standard heavy truck collision test.
- Weichai high powered engines joint with AVL, BOSCH efforts to build golden power system
- FAST 10 speed transmission, unique structure of twin shaft main box, auxiliary box using fine pitch helical gear design
- Hande 9.5 tons axle and 16 tons maintenance free 5.262 ratio single reduction axle
- Internationally famous brand - imported ZF steering machine, Eaton clutch
Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
