SHACMAN Tipper Truck F3000 6x4 420 EuroII Powerful performance and payload capacity
Detailed Product Description
Model:SX3255DV384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP12.420E32
Engine Power/(kw/HP): 309kW /420 Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Tipper Dump Truck Parameters
| Model | SX3255DV384 |
| Drive type | 6x4 |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3975+1400mm |
| Performance | Maximum speed/(km/h) | 40～55/75 |
| Ground clearance | >314 |
| Engine | Brand | WEICHAI |
| Model | WP12.420E32 |
| Power/(kw/HP) | 309kW /420 Hp |
| Maximum torque / (N.M)/rpm | 1750N.m |
| Displacement/(L) | 9.726L |
| Emission standard | Euro II |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake |
| Park brake | Rear wheel spring brake |
| Auxiliary brake | WEVB engine exhaust brake |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 |
| Tires | Type | 12.00R20 (12+1) |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
Overview
Engine Performance:
The truck is equipped with a Euro II-compliant engine, ensuring lower emissions and better fuel efficiency.
The engine has a maximum power output of 430 horsepower, providing ample power to tackle demanding tasks.
It is designed to deliver high torque at low RPMs, enabling excellent climbing and acceleration capabilities.
Transmission:
The F3000 6x4 dump truck is typically equipped with a manual transmission system.
The transmission offers multiple gears, allowing the driver to select the appropriate gear ratio for different terrains and load conditions.
The transmission system is designed to handle the high torque output of the engine efficiently.

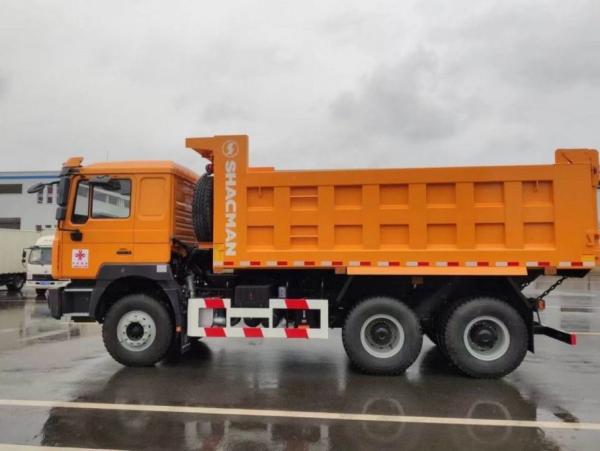

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
